2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force

Brand

Brand
SKU: R2E260065
26%

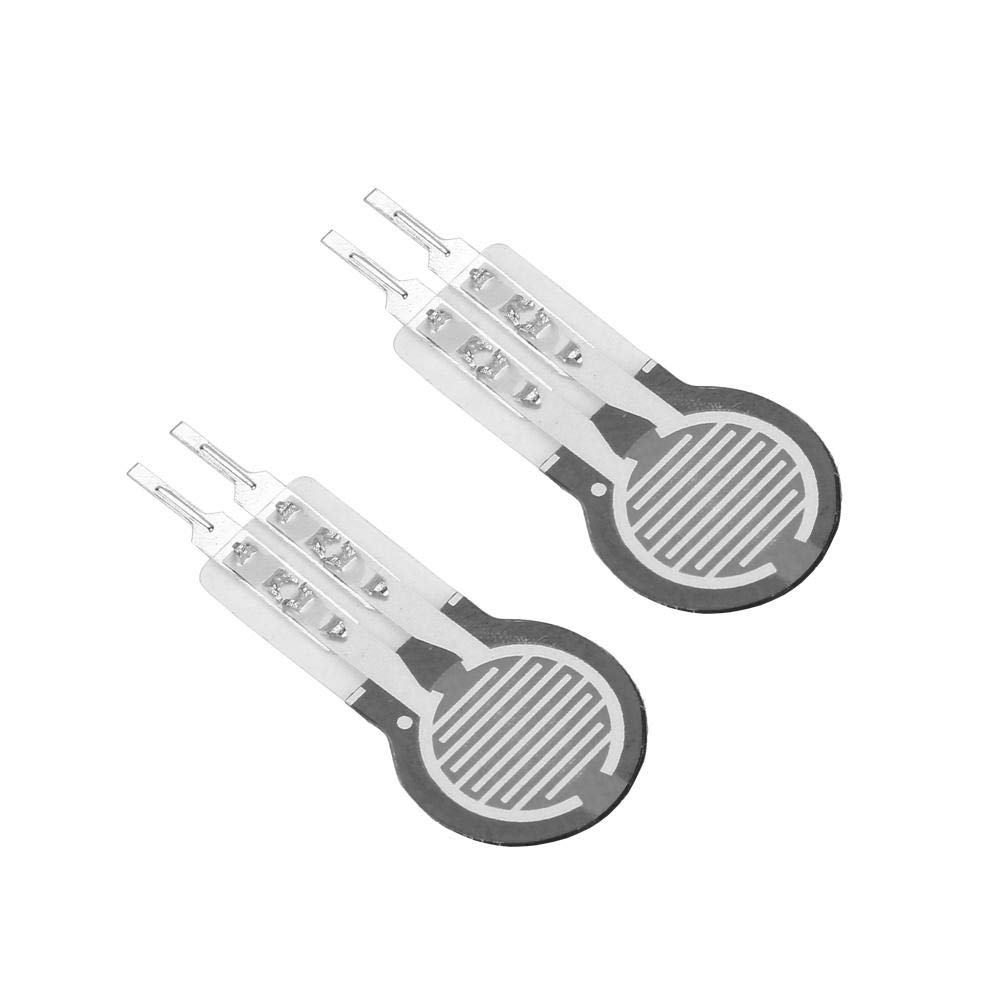

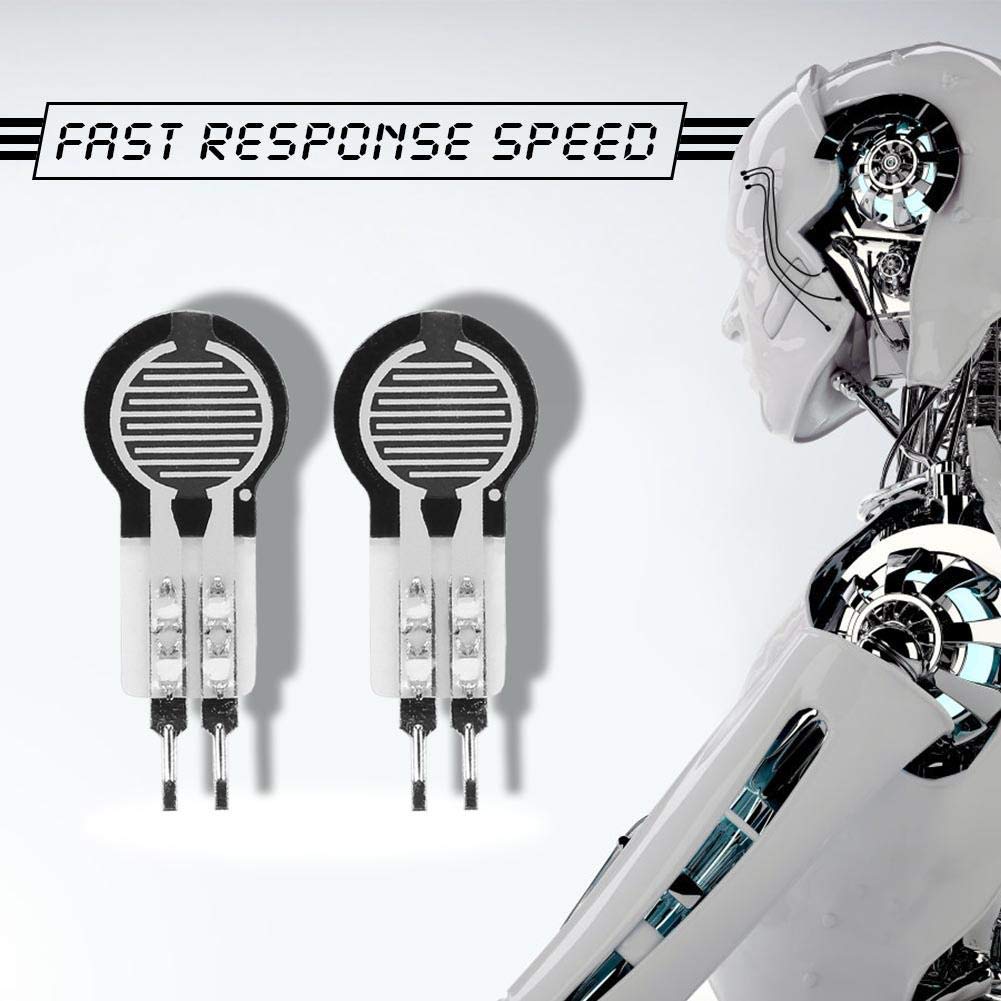

2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force - Image 2
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force - Image 3
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force - Image 4
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force - Image 5
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force - Image 6
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force - Image 7
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force - Image 8
2Pcs Thin Film Pressure Sensor 20g-2Kg DF9-16 High Precise Force Sensitive Resistor Force - Image 9

₹2,546 Original price was: ₹2,546.₹1,886Current price is: ₹1,886.

10 in stock
:
:
:
Remains until the end of the offer

Product Features

  • Flexible/Bend Sensor: The RP-C resistance type pressure sensor is a flexible thin film sensor whose resistance decreases along with the pressure increases
  • Variable Resistance: Single sensitive area pressure sensor is equivalent to a dual port variable resistance whose resistance is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting
  • Quick Response: The pressure sensor supports static/dynamic pressure sensing, and has fast response speed
  • Premium Quality Material: Thin film pressure sensor is made of high quality material, the sensor is durable and has long service life
  • Widely Applications: Force sensitive resistor is widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment
10 in stock
Chat With Us
Add to Wishlist
Add to Wishlist
SKU: R2E260065 Category: Tag: Brand:
The Round2Earth Advantage
  • Free Shipping All Across India
  • Estimated Delivery Time 10-15 Days
  • Price Inclusive of All Taxes
  • Free COD Available for All Products
  • 100% Genuine Product Imported from the USA

Description

    Product Description

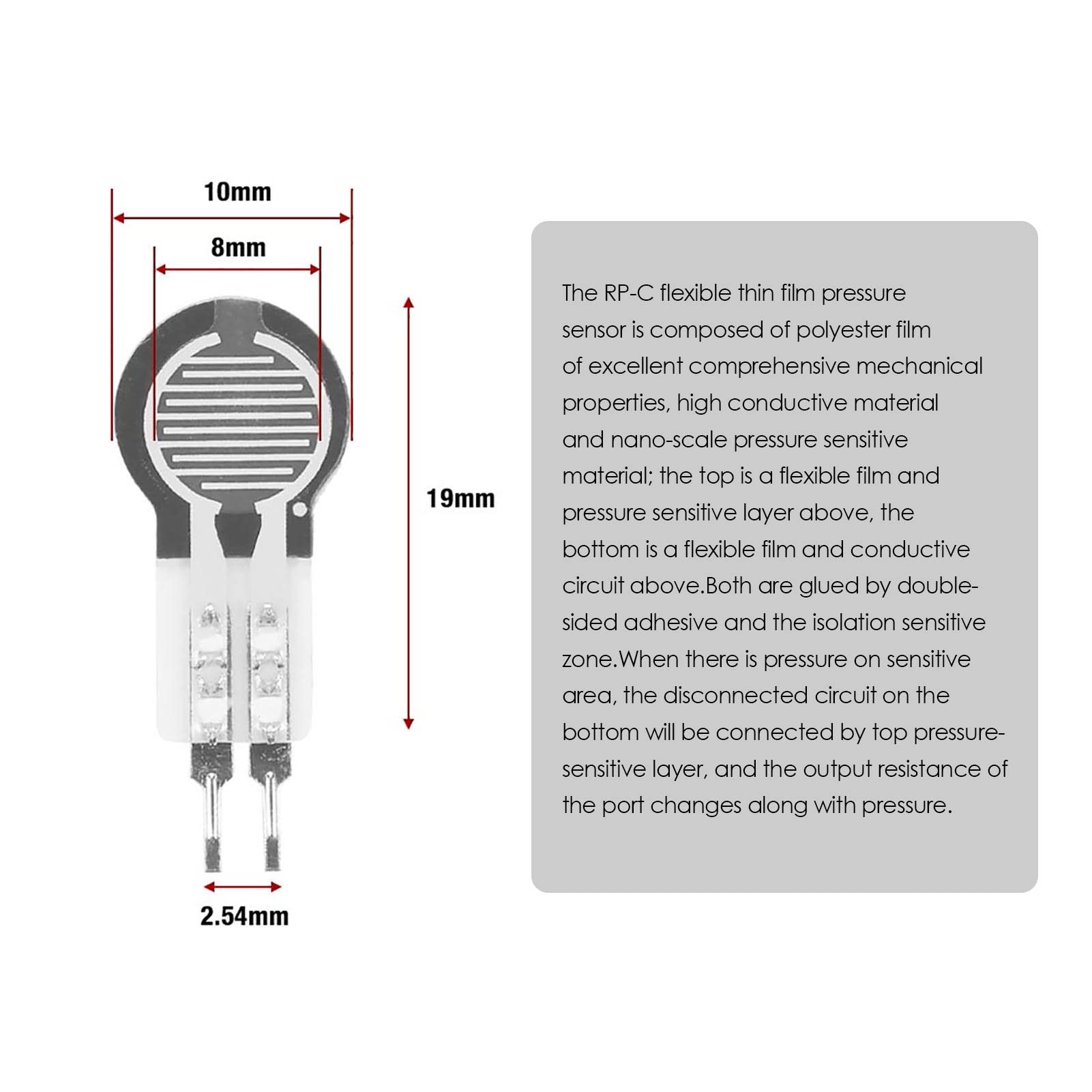

The RP-C flexible thin film pressure sensor is composed of polyester film of excellent comprehensive mechanical properties, high conductive material and nano-scale pressure sensitive material; the top is a flexible film and pressure sensitive layer above, the bottom is a flexible film and conductive circuit above.Both are glued by double-sided adhesive and the isolation sensitive zone.When there is pressure on sensitive area, the disconnected circuit on the bottom will be connected by top pressure-sensitive layer, and the output resistance of the port changes along with pressure.

Specification:
Model: RP-C10-ST
Thickness: 0.4 mm
Trigger force: 20 g, triggered when resistance is less than 200 k? by default
Pressure sensing range: 20 g ~ 2 kg
Pressure action mode: Static or dynamic (frequency within 10 Hz)
Non-trigger resistance: More than 10 M?
Activation time: less than 0.01 S
Operating temperature: -40 ? ~ +85 ?
Lag: +10%, (RF+ – RF-)/FR+, 1000g force
Response time: < 10 ms Drifting: <5%, 1Kg force static load 24H Weight: 1g / 0.04oz (approx.) Package list: 2 * Pressure Sensors Note: Please allow small size error due to manual measurement. Thanks for your understanding.

  • UPC-6975123037407, 0724316209031 724316209031
  • SKU -WEBB07T1CHY58
  • Model No. -Walfront9snmyvxw25
  • Manufacturer. -Walfront
