DIYmall 2pcs Hx711 Weight Weighing Load Cell Conversion Module Sensors Ad Module for Ardui

Description

Product Description

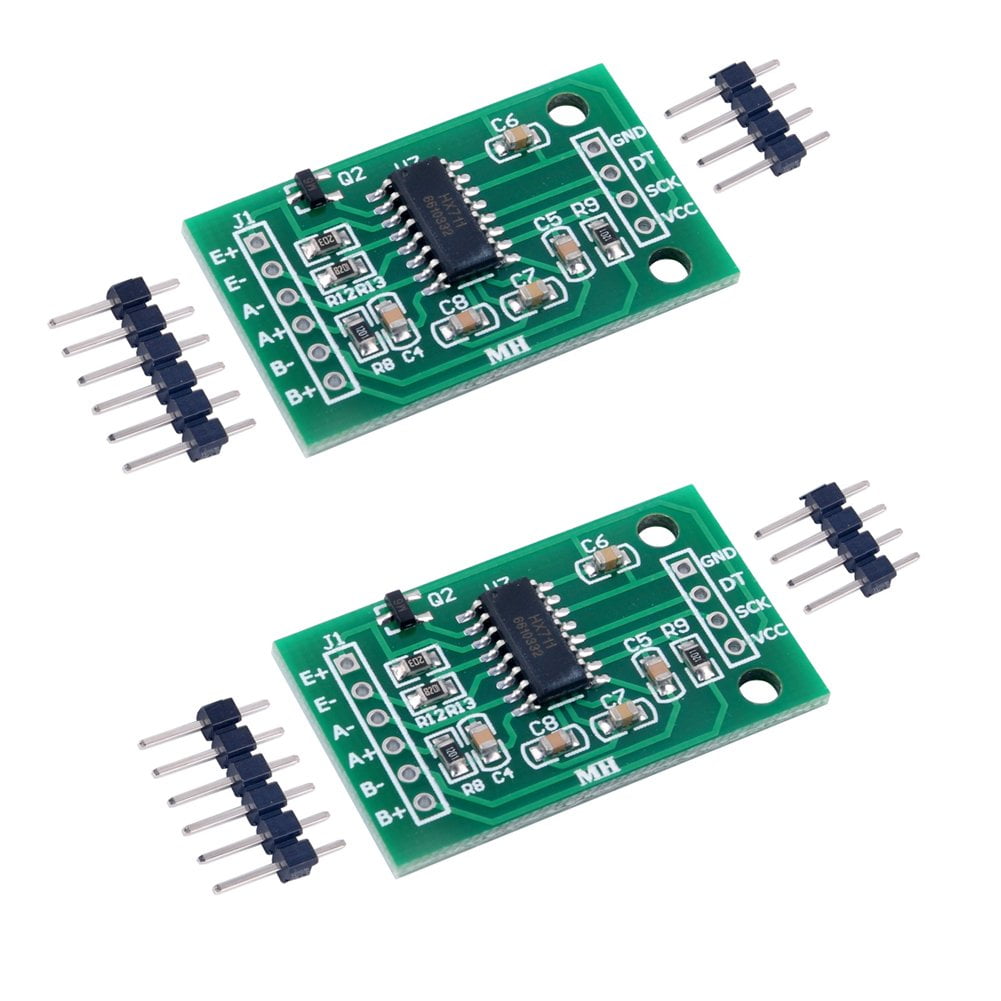

DIYmall HX711 24BIT Precision ADC Module Weight Weighting Sensor
Description: This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.
Features:
Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 3264 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-reset
Simple digital control and serial interface: pin-driven controlsno programming needed
Simultaneous 50 and 60Hz supply rejection
Current consumption including on-chip analog power supply regulator: normal operation < 1.5mApower down < 1uA Operation supply voltage range: 2.6 ~ 5.5V Operating Temperature Range:-20 degree ~ +85 degree Package Included: 1 X HX711 24BIT Precision ADC Module 10kg link https://www.amazon.com/dp/B01I66NFQ0 20kg link https://www.amazon.com/dp/B012FYL00C 5kg link https://www.amazon.com/dp/B01I66M36I 1kg link https://www.amazon.com/dp/B01LZDWH4R Document link: https://github.com/aguegu/ardulibs/tree/master/hx711 https://cdn.sparkfun.com/datasheets/Sensors/ForceFlex/hx711_english.pdf https://www.youtube.com/watch?v=nGUpzwEa4vg

• UPC-0702795763015 702795763015
• SKU -WEBB010FG9RXO
• Model No. -FBA_FZ0728X2
• Manufacturer. -DIYmall
