DROK Electronic Thermostat Controller, DC 6-30V 24V Digital Temperature Control Board -50

Brand	Brand

SKU: R2E248320

~~₹3,314~~ Original price was: ₹3,314.₹2,455Current price is: ₹2,455.

10 in stock

Remains until the end of the offer

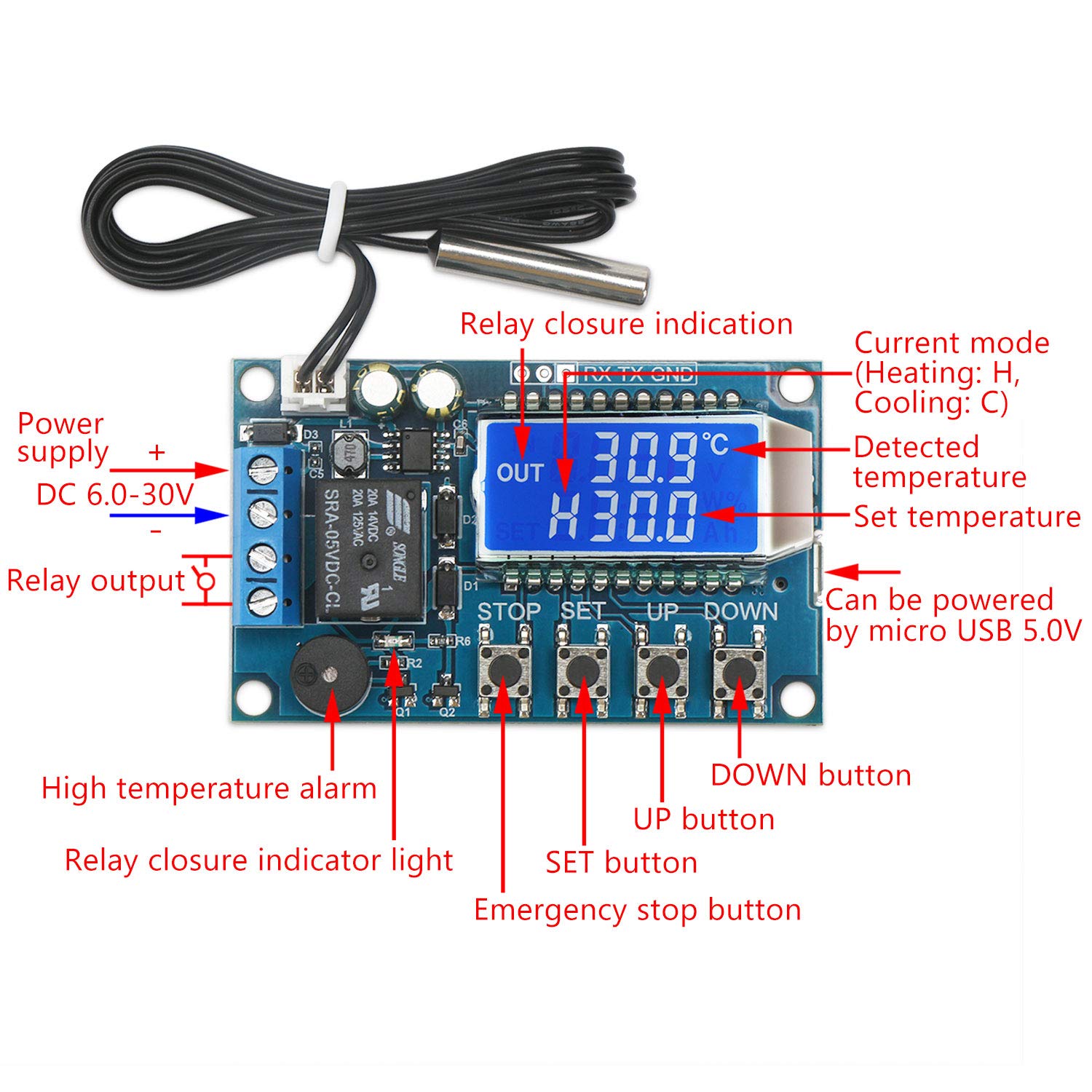

Product Features

DROK electronic thermostat controller power supply is DC 6-30V or 5V micro USB; control load current is 10A (Max); test temperature is -50~110?; sensor length is 0.5 meter.
High current: Our digital temperature control board adopts high density PC board installation technology, the switch capacity can be up to 10A in spite of the small size.
LCD display: Designed with bright LCD display, people can check the temperature clearly from any angle.
User-friendly functions: The thermostat module has the function of real-time temperature reporting, temperature correction function, high-temperature alarm, emergency stop function and support UART Set, which make the module reliable and easy to use.
Applications: With waterproof temperature sensor probe, it can be widely used for domestic appliance, office machine, audio, equipment, automobile, etc. ?Remote control TV receiver, monitor display, Audio,Raspberry Pi equipment high rushing current use application?

10 in stock

SKU: R2E248320 Category: Industrial & Scientific Tag: Bestsellers Brand: DROK

The Round2Earth Advantage

Free Shipping All Across India
Estimated Delivery Time 10-15 Days
Price Inclusive of All Taxes
Free COD Available for All Products
100% Genuine Product Imported from the USA

Description
Additional information

Description

Product Description

Parameter:

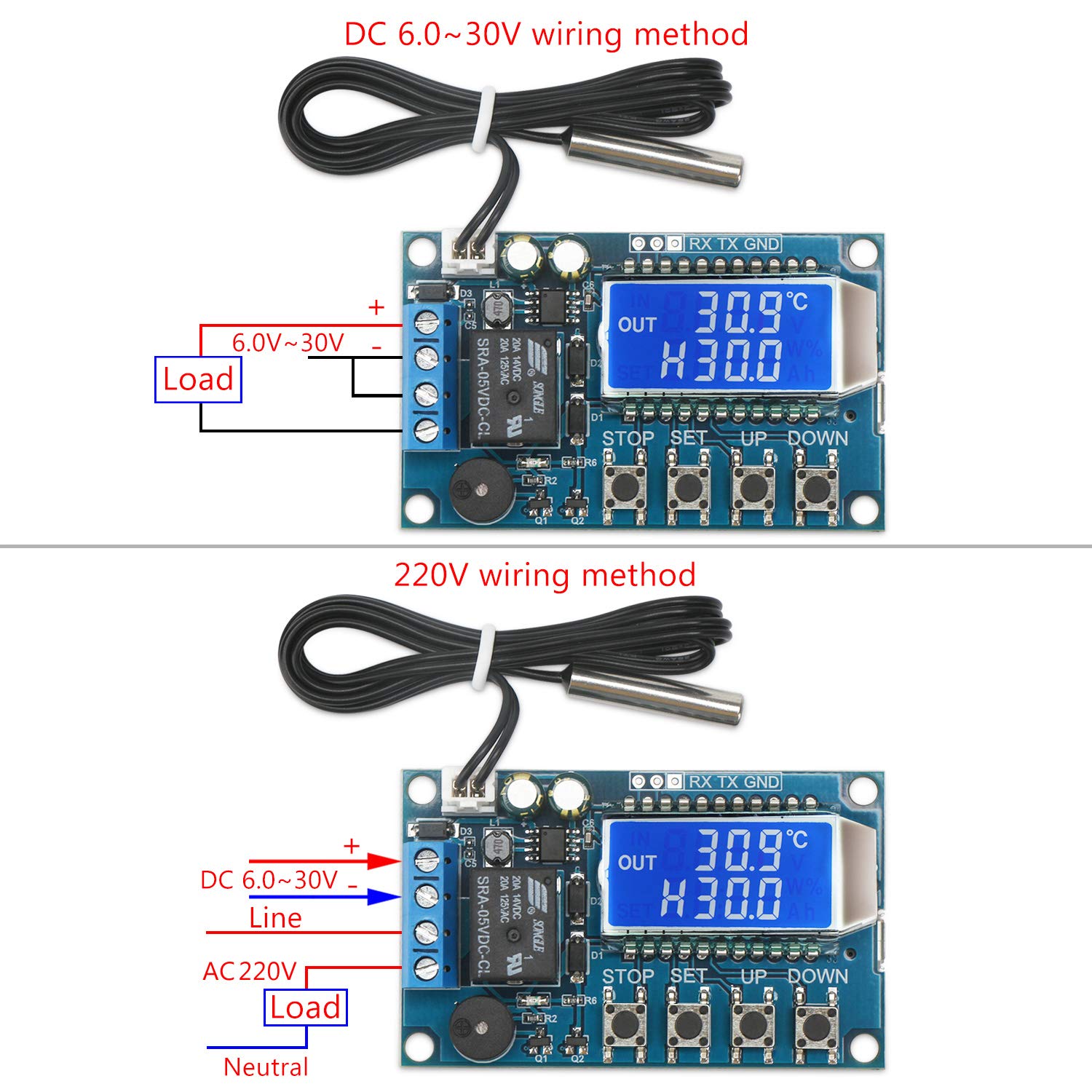

Power supply: DC6.0~30V or 5V Micro USB
Temperature control range: -50?~110?
Temperature control precision: 0.1?
Measuring input: NTC10K/B3950
Refresh rate: 0.5 second
Output type: relay output 10A

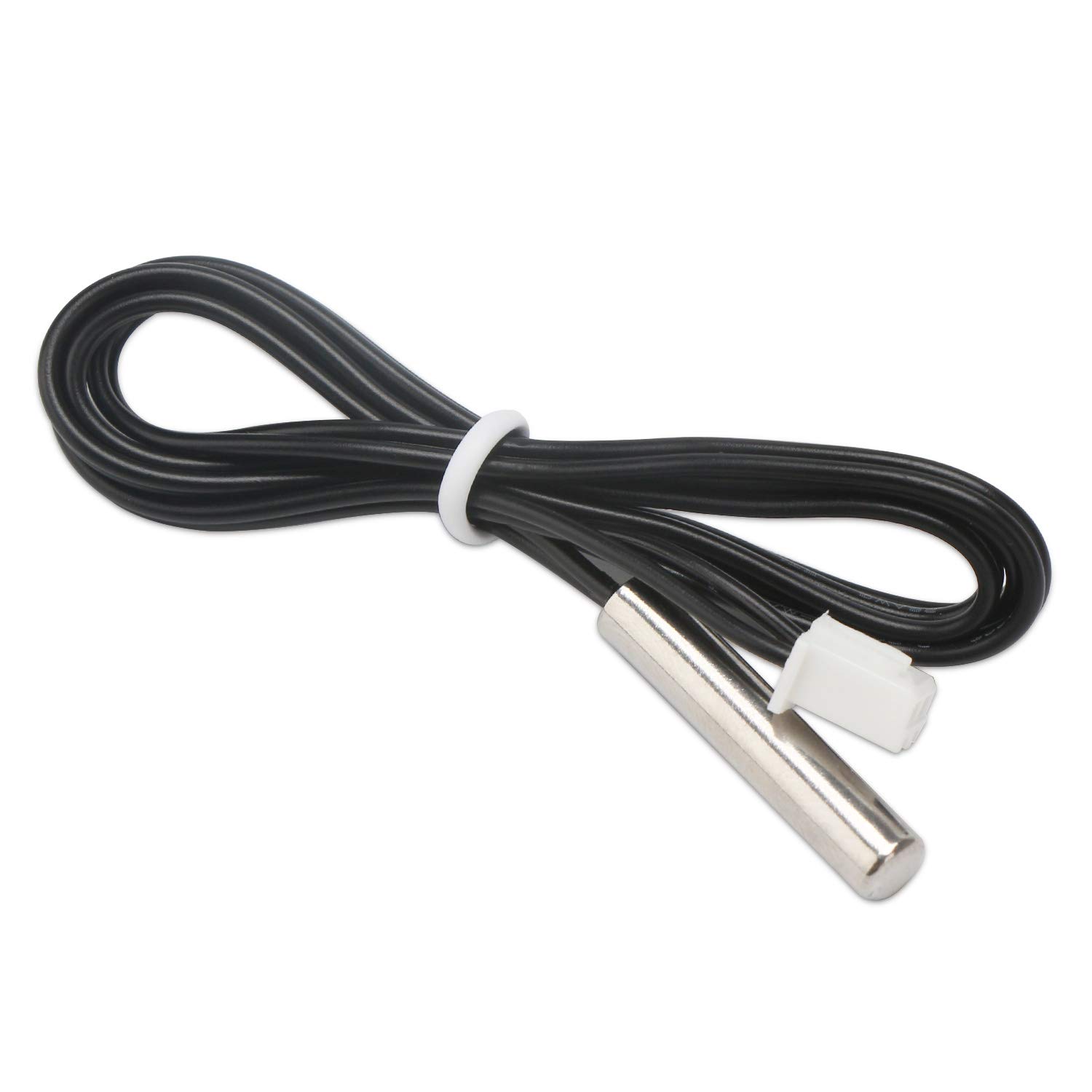

Probe type: waterproof probe, L: 0.5m

Set Parameter:
Working mode / setting temperature / hysteresis temperature setting:
1. In the running interface, short press the “SET” button to enter the quick setting interface.
2. After entering the quick setting interface, switch the parameter to be set (working mode/setting temperature/ hysteresis temperature) by short pressing the “SET” button.
3. Change the parameter value by pressing ‘UP’ or ‘DOWN’ after select parameter.
4. Hold press “SET” button for more than 3 seconds or have no any button operation for 6 seconds, it will save the parameters and exit the quick setting interface automatically.

Set ALA/OPH/OFE (Alarm temperature / delay starting setting / temperature correction:):
1. In the running interface, hold press the “SET” button for more than 3 seconds, enter the parameter setting interface.
2. After entering the parameter setting interface, switch the parameter to be set (alarm temperature/delay starting setting/temperature correction) by short pressing the “SET” button.
3. Use the “UP” “DOWN” button to change the parameter.
4. Hold press “SET” button for more than 3 seconds or have no any button operation for 6 seconds, it will save the parameters and exit the parameter setting interface automatically.

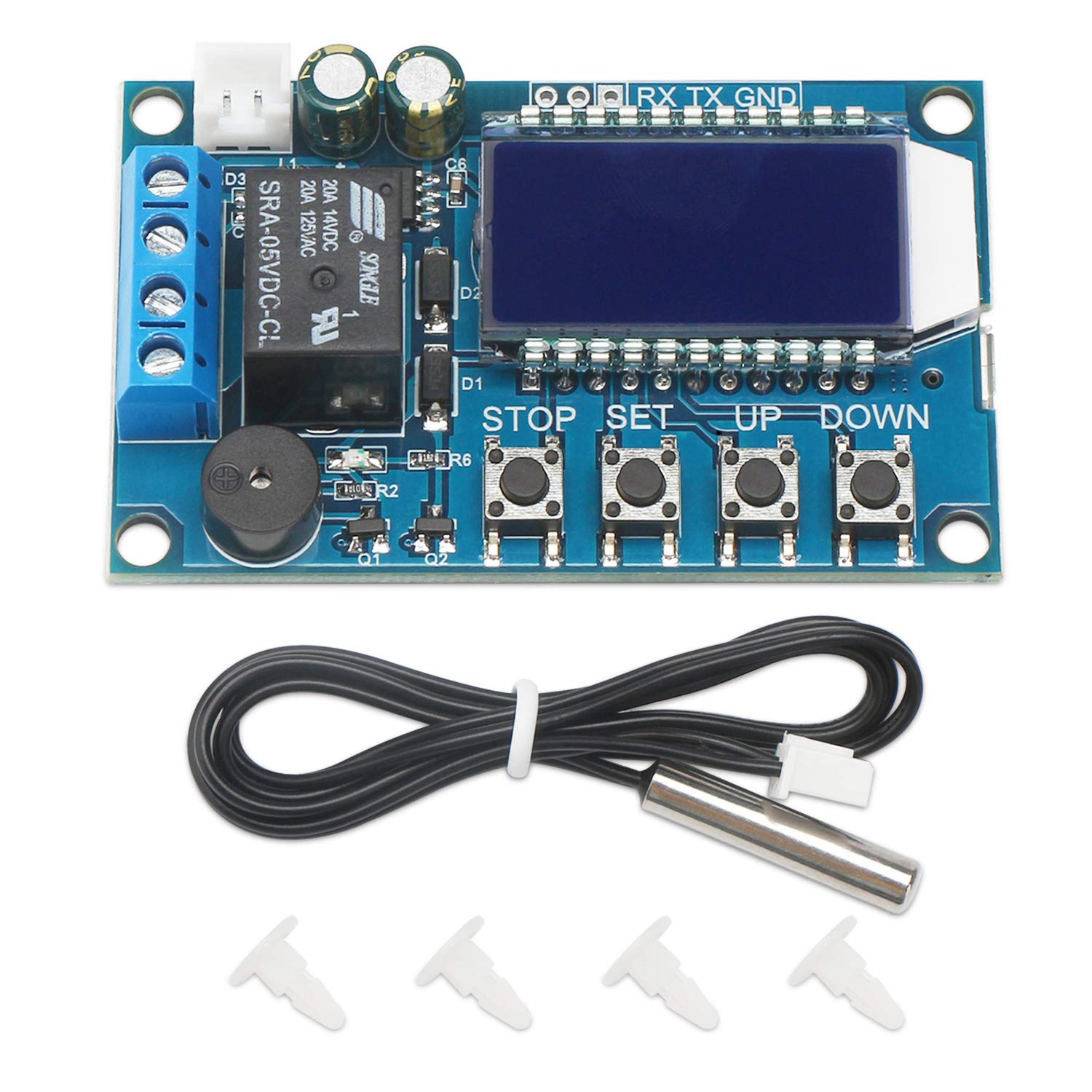

Package Including:
1x Electronic Thermostat Controller
