Geekworm for Raspberry Pi 4, X862 V2.0 M.2 NGFF SATA SSD Storage Expansion Board UASP Supp

Product Features

• ?[Important]Strongly recommend to use 5.8G wifi AP instead of 2.4G wifi AP, according to the feedback if use the external USB device (like mouse, keyboard, display) or use X857-C3 metal case(ASIN:B08VJ6P48B ), the system maybe unstable or not boot from the SSD. Must format the new SSD before use.

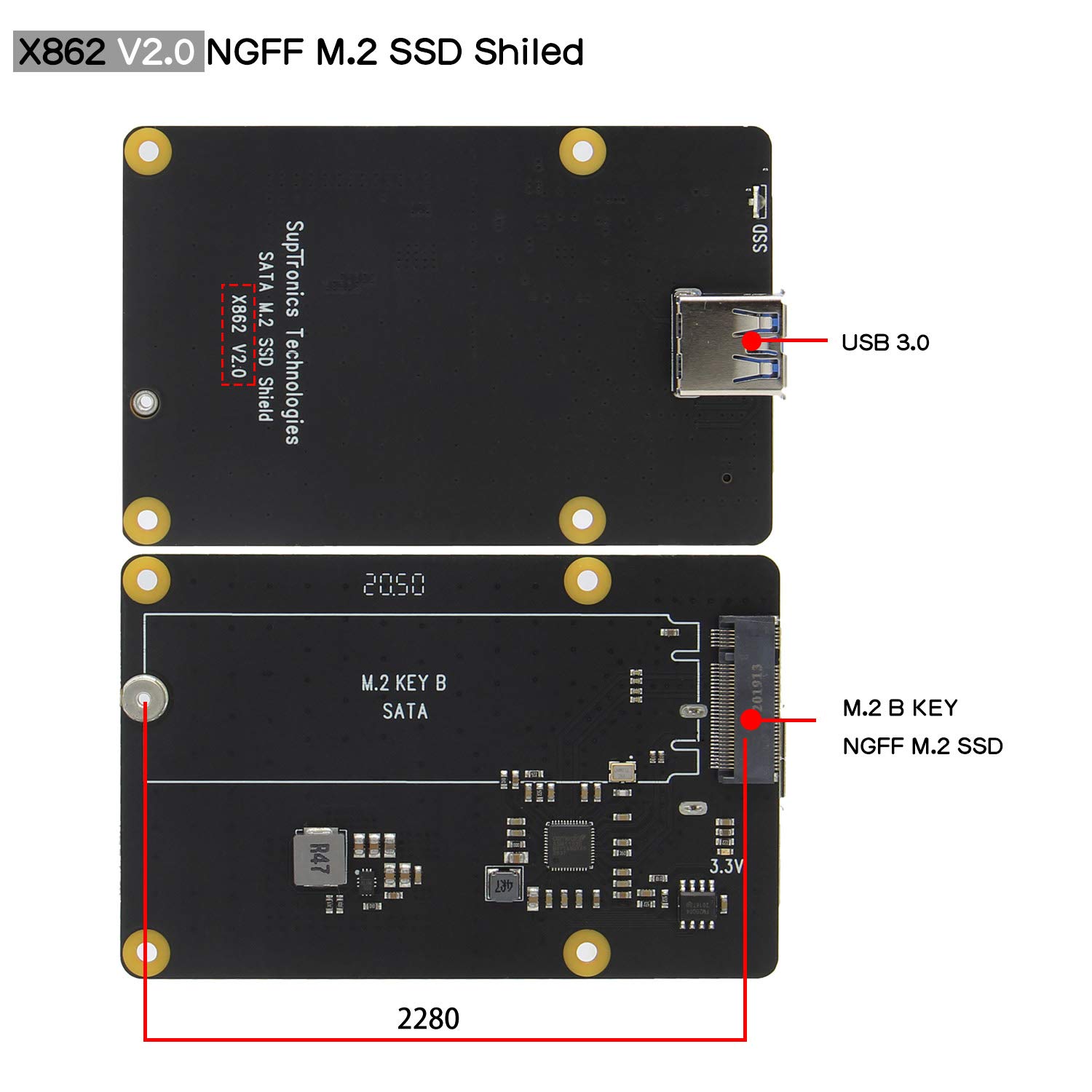

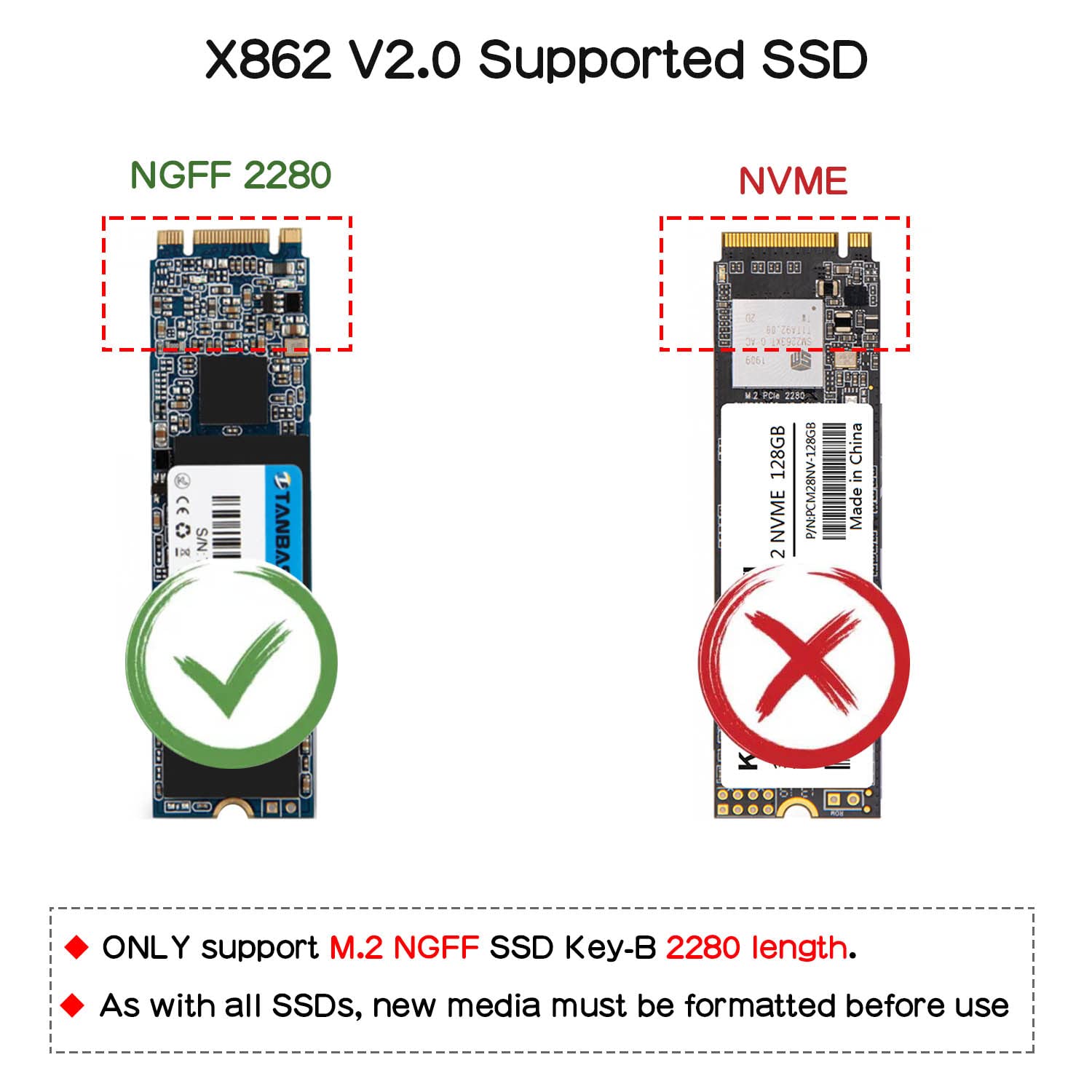

• ?Updated X862 V2.0 M.2 NGFF SATA SSD Shield can support up to 2TB m.2 NGFF SSD solid-state drive;? Only supports Raspberry Pi 4 Model B; ? Supports M.2 NGFF 2280 SSD lengths ONLY; ? UASP supported only, not support TRIM

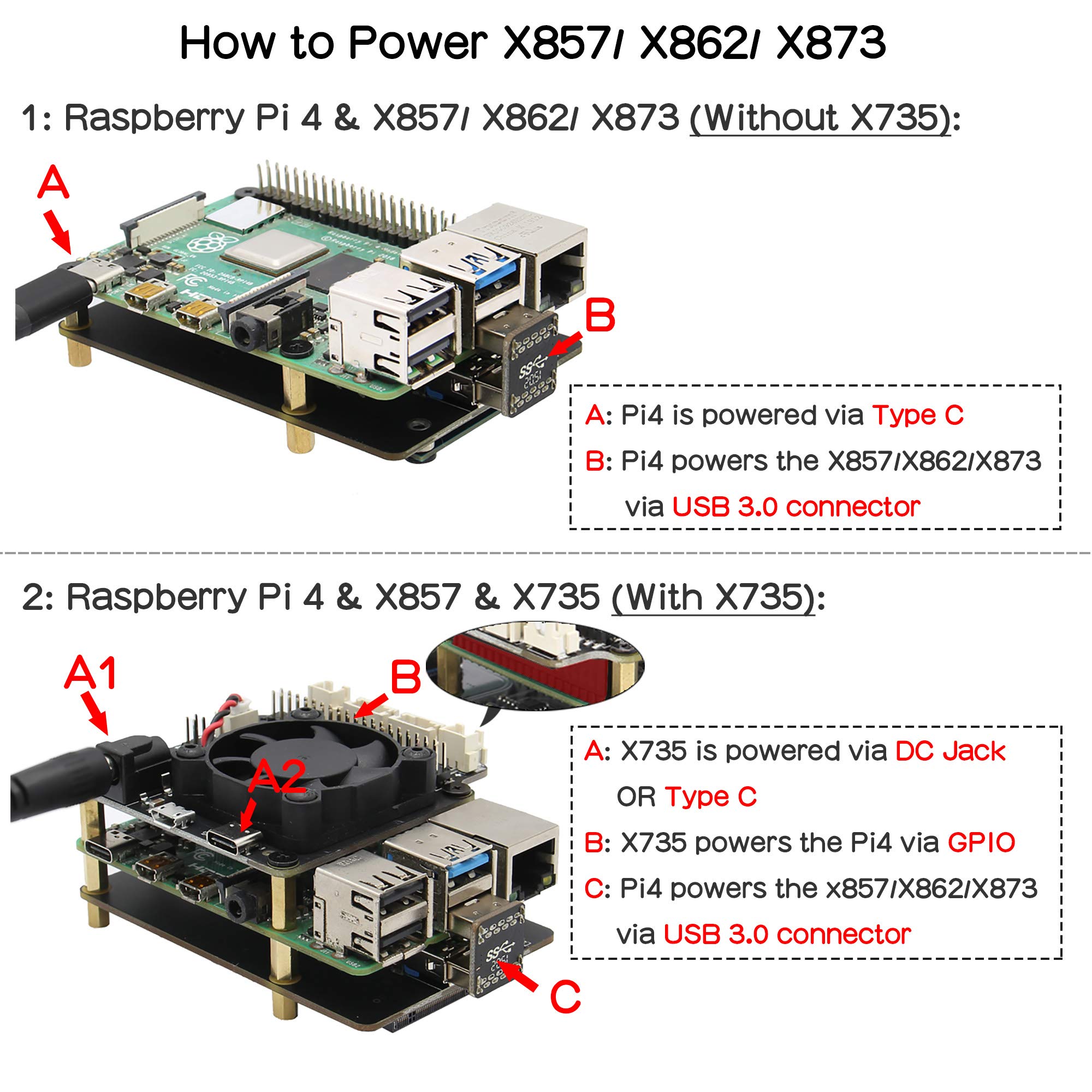

• ? How to power RPi 4&X862: 5Vdc +/-5% , Powered by Raspberry Pi 4 Type-C Power In port;? How to power RPi 4&X862 V2.0& X735: 5Vdc +/-5% , Powered by X735 Type-C or DC Jack Power In port; Recommend to use Geekworm UL listed 5V 4A Type-C power adapter (ASIN:B09J856PND).
• ? Matching metal case for RPi 4&X862 V2.0&X735/X708, refer to X857-C3 Case(discontinued), BUT note the power control switch should be connect to X735(ASIN:B07R45W1LN)/X708(ASIN:B08DNRYM4Y), there is no PWR port for external power switch on X862 V2.0.
• ? Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying, refer to Geekworm WiKi search(Does_the_X825/X855_support_USB_boot); If the SSD is not recoginzed or other issue, refer to X862 FAQ of WiKi.
• ? The X862 does NOT support Geeekpi UPS V5, strongly recommend to use with X728 UPS(ASIN: B087FXLZZH).
