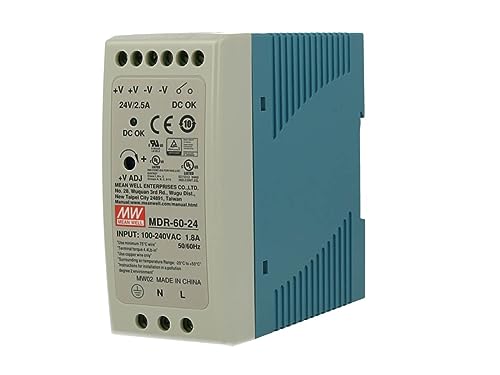

MEAN WELL MDR-60-24 DIN-Rail Power Supply 24V 2.5 Amp 60W

Description

Product Description

60W DIN-Rail switching Power Supply 24 Volts 2.5 Amps Specifications • Universal AC input range • Protections: Short-circuit, Overload, Overvoltage • 100% Full load burn-in test • Soft-start circuit, limiting AC surge current • Input Voltage: 85-264VAC 47-63Hz, or 120-370VDC • Input Current Full load: 1.8A(115V) / 1.0A(230V) • Size: 3.9 x 1.6″ x 3.5″ • Weight: 0.7 lbs. • 3-year warranty Detailed Specifications: • Primary Output Voltage (VDC): 24 • Output Current (A): 2.5 • Maximum Output Power (W): 60 • Family: MDR-60 • Input Voltage (VAC): 85 to 264 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.8 • Output Connector Type: Screw Terminal • Efficiency (%): 88 • Operating Temperature-Min (Cell): -20 • Operating Temperature-Max (Cell): 70 • Length (inch): 1.57 • Width (inch): 3.54 • Height (inch): 3.94 • Agency Approvals: UL/CUL/TUV/CB/CE • Color: White • Style: DIN”.

• UPC-0647336000177, 0646040982465 647336000177, 646040982465
• SKU -WEBB005T6OBFU
• Model No. -MDR-60-24
• Manufacturer. -MEAN WELL
