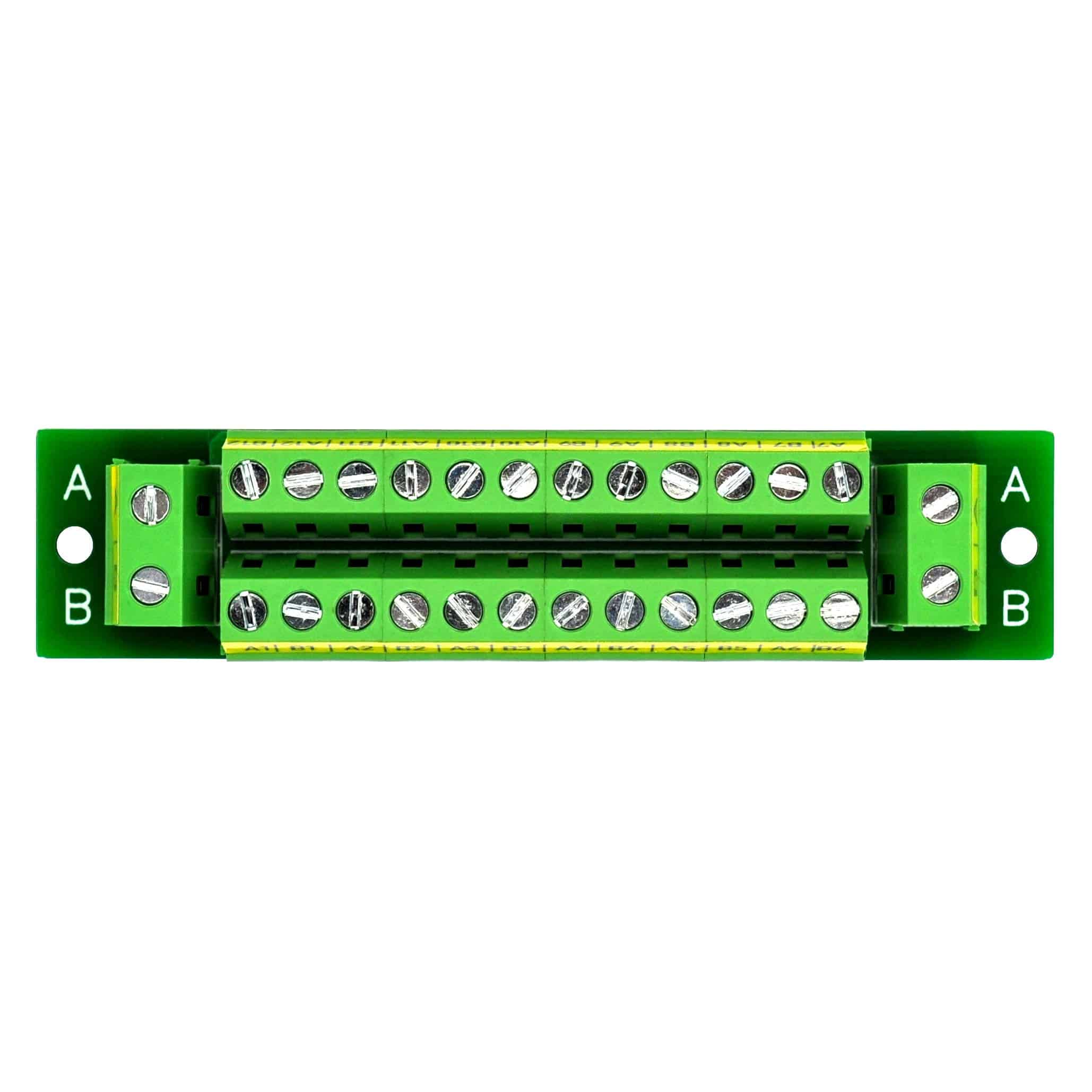

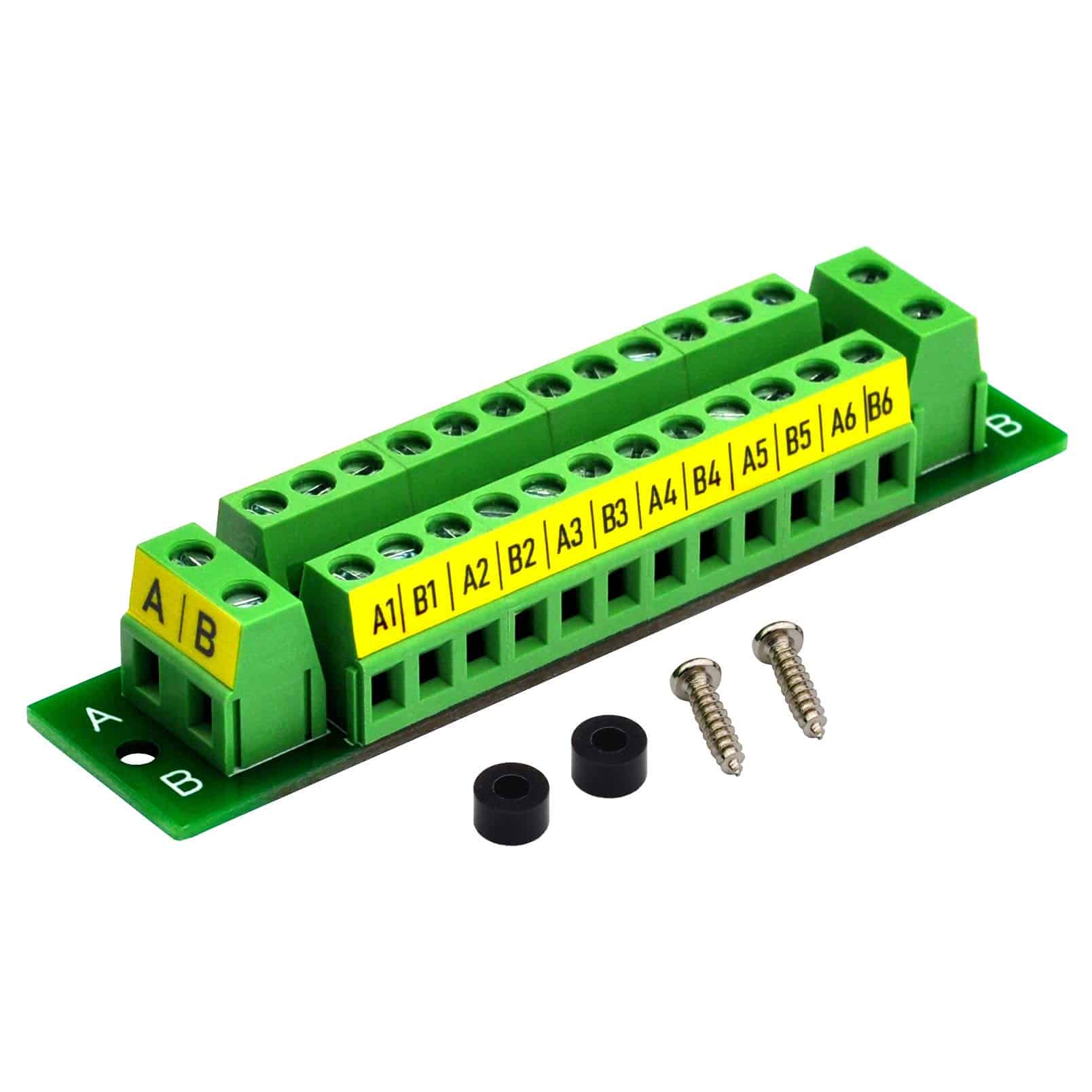

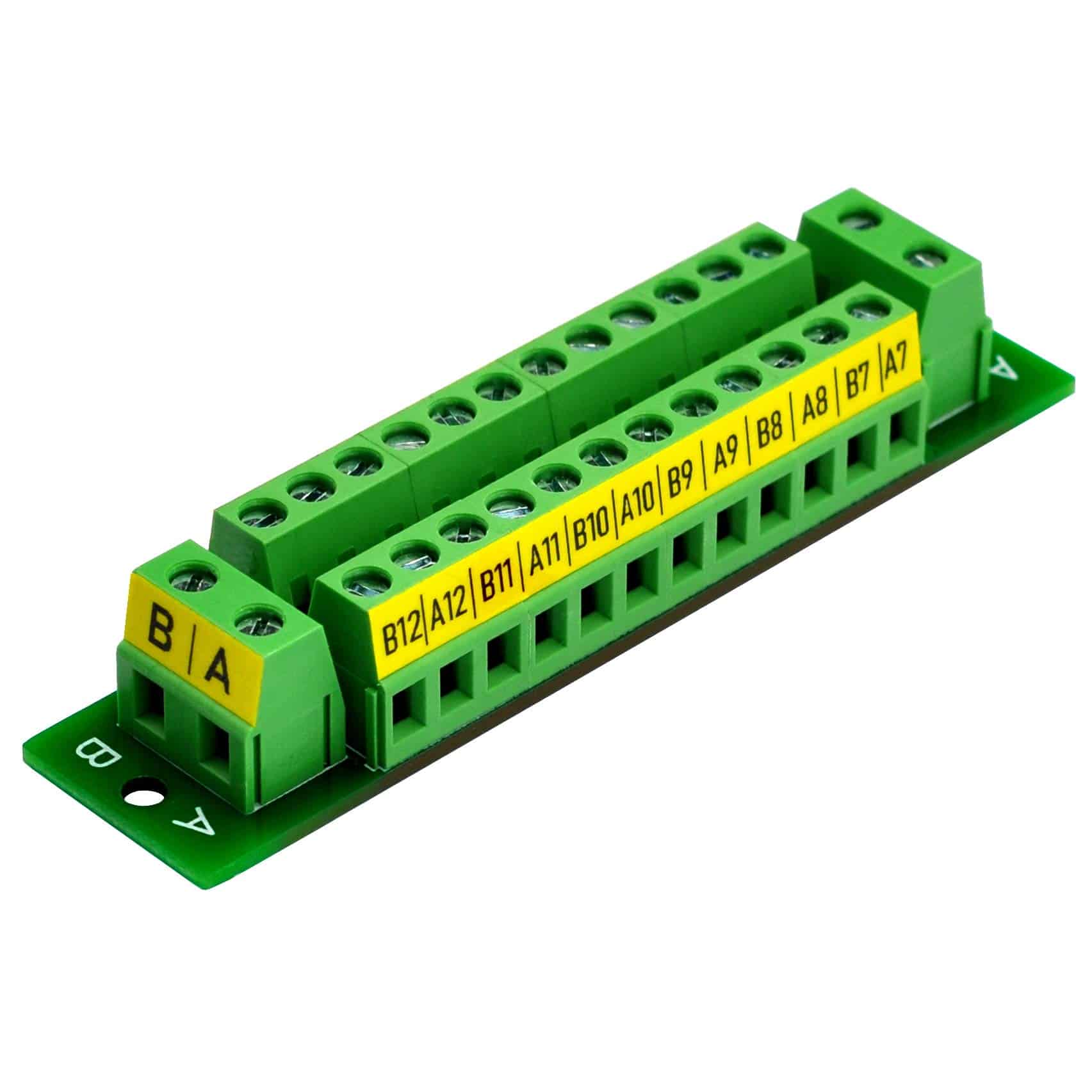

OONO 16 Amp 2×12 Position Terminal Block Distribution Module for AC DC
26%
₹2,695 Original price was: ₹2,695.₹1,996Current price is: ₹1,996.
Product Features

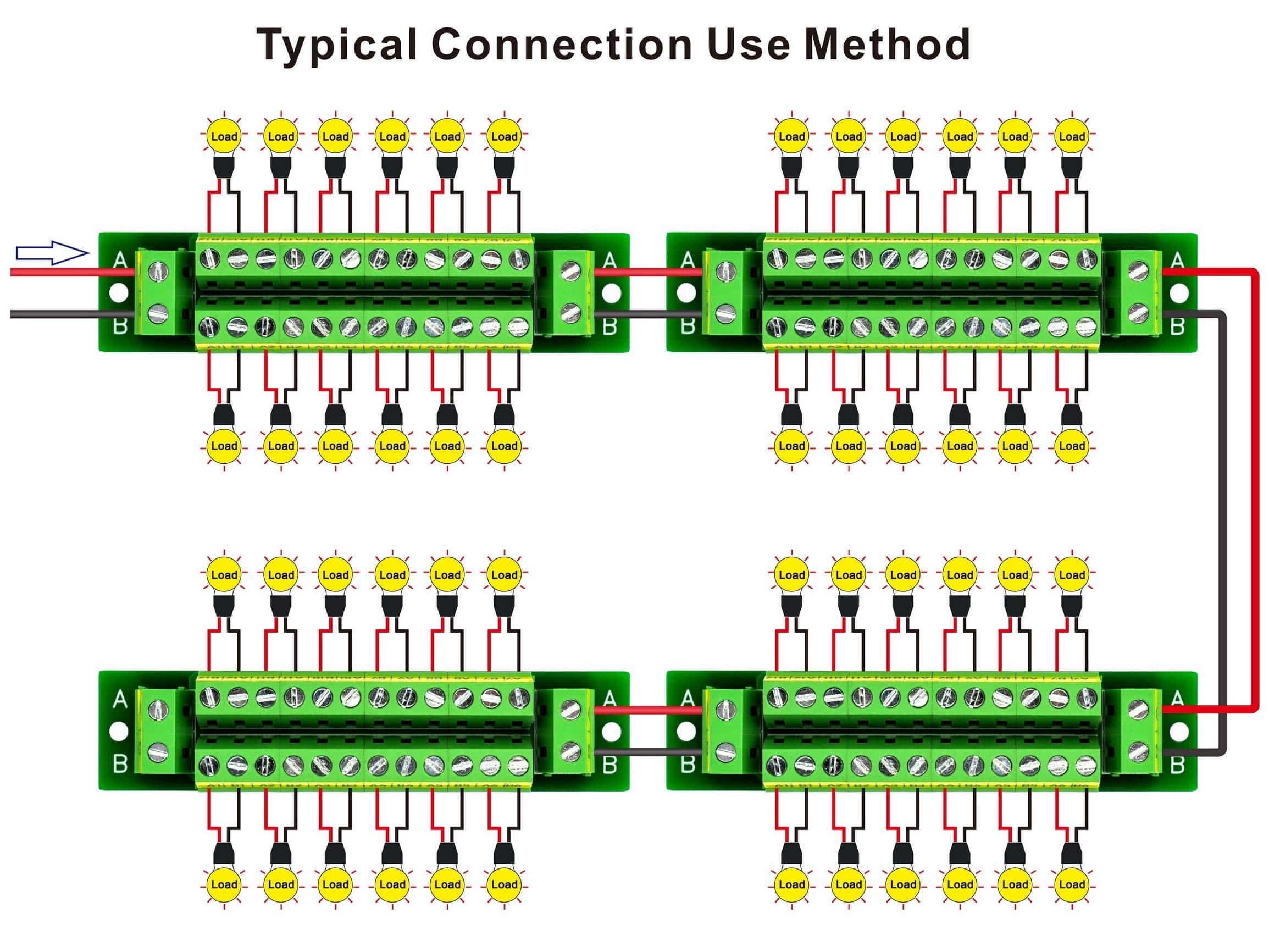

- 16Amp 48V 2×12 position screw terminal block distribution module. Support for multiple module extension connections.
- Rated current 16 Amp(total input or output), Maximum voltage 48V

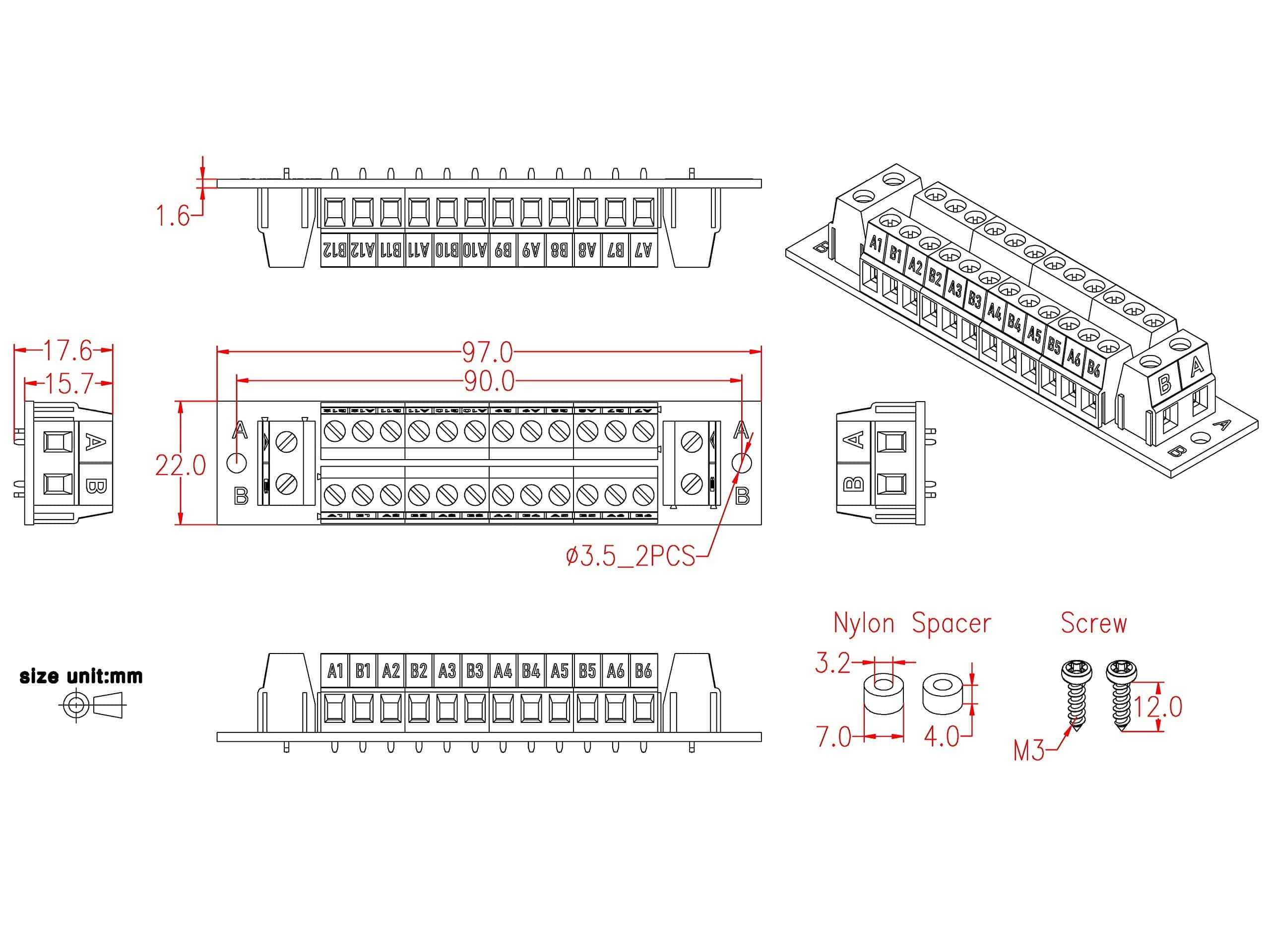

- A / B terminal blocks, Pitch 7.5mm/0.295″, Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws – M3,steel, Cr3+ Zn plated. Pin header and Cage – Brass.

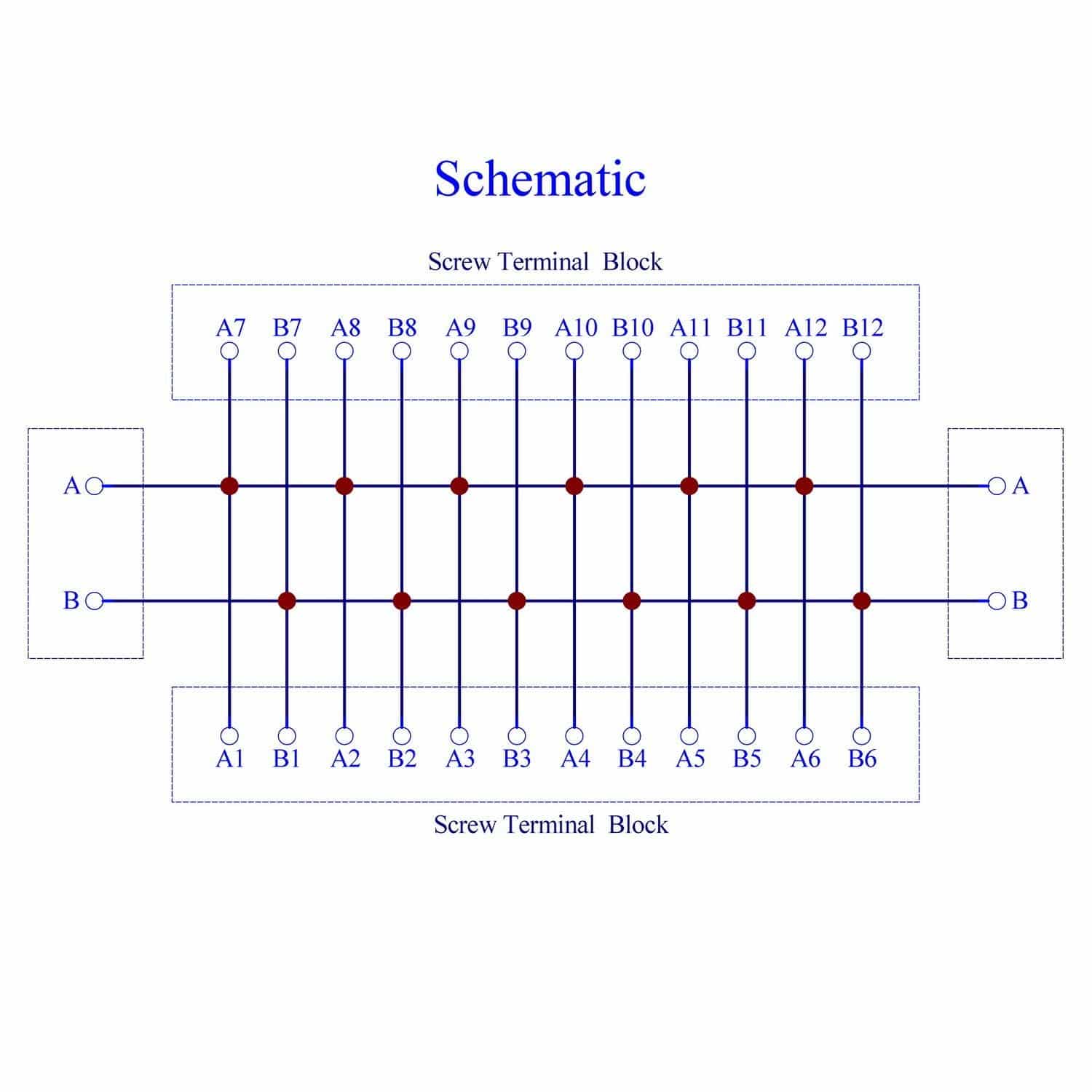

- A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197″, Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws – M3,steel, Cr3+ Zn plated. Pin header and Cage – Brass.

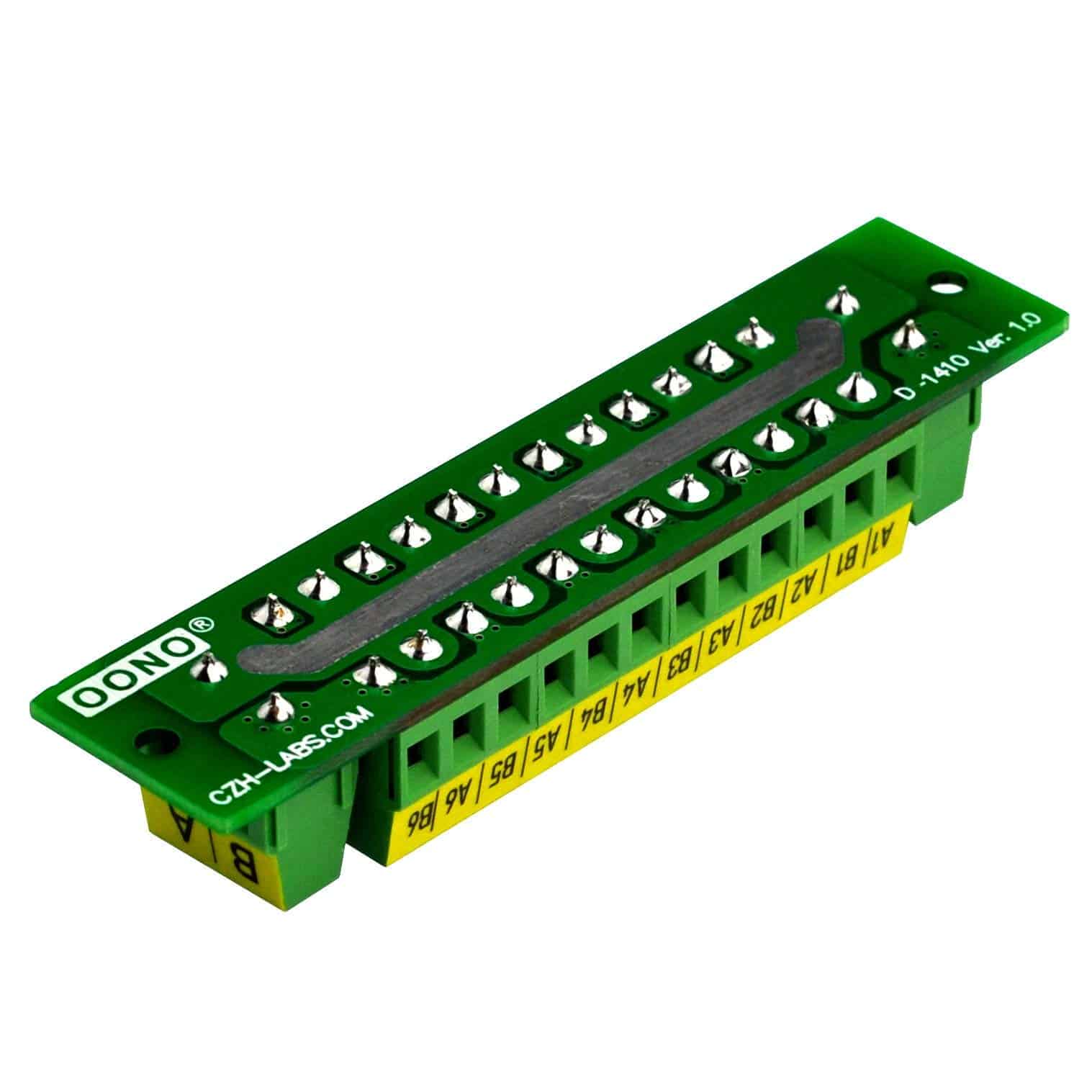

- UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
10 in stock
Description
- Product Description
1, 16Amp 48V 2×12 position screw terminal block distribution module. Support for multiple module extension connections. 2, Rated current 16 Amp(total input or output), Maximum voltage 48V. 3, A / B terminal blocks, Pitch 7.5mm/0.295″, Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws – M3,steel, Cr3+ Zn plated. Pin header and Cage – Brass. 4, A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197″, Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws – M3,steel, Cr3+ Zn plated. Pin header and Cage – Brass. 5, UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.
- UPC-6954525591793
- SKU -WEBB08TBXQ7H6
- Model No. -D-1410
- Manufacturer. -CZH-LABS
