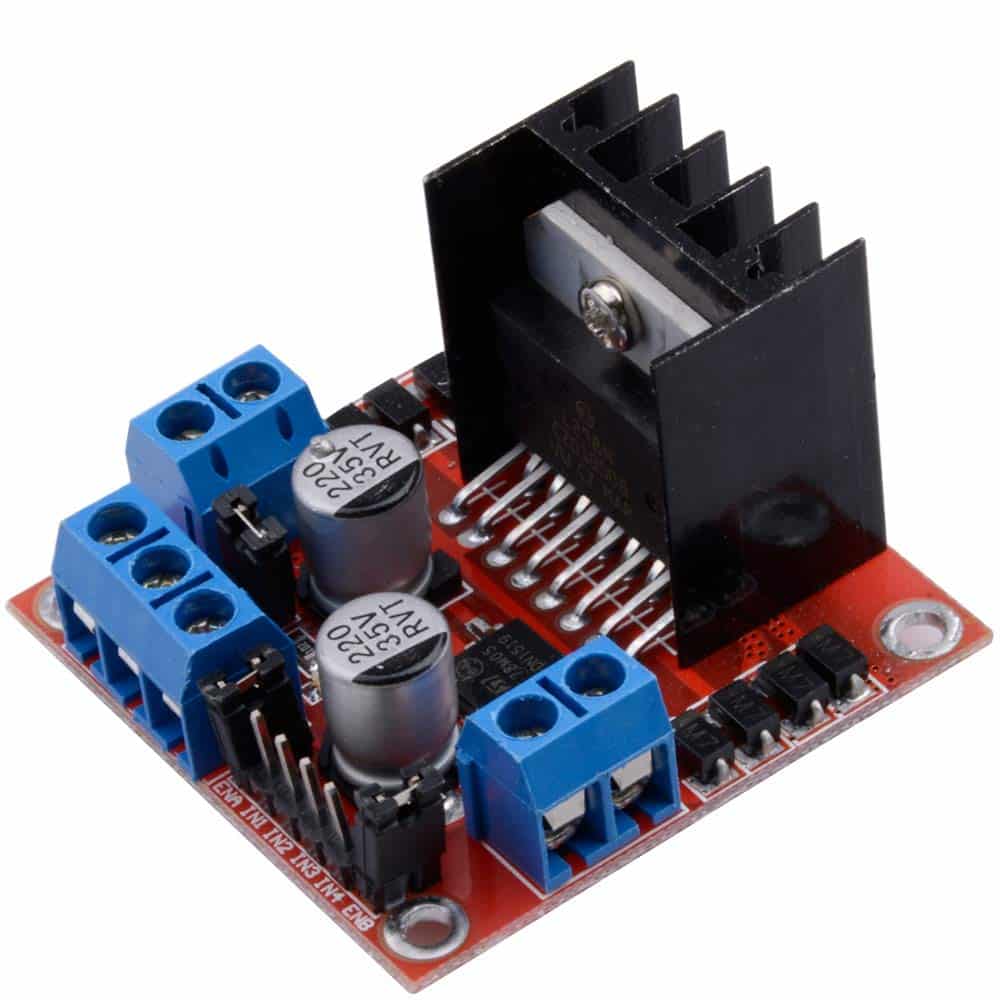

Qunqi L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper For Arduino
₹1,740
:::
Remains until the end of the offer
Product Features
- Dual-channel H-bridge driver working mode creates higher working efficiency,L298N as main chip.Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
- To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage
- Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
- High working power to 35v,large current can reach 3A MAX and continue current is 2A, power to 25w.
- Large capacity filter capacitance,afterflow protection diode, more stable and reliable.
10 in stock
Description
- Product Description
Specification:
Chip: L298N
Logic voltage: 5V
Logic current 0mA-36mA
Storage Temperature: -20 ? to ? to +135
Operating mode: H-bridge driver (dual)
Drive voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W
Dimensions: 43x43x27mm
Package include:
1x L298N Module
Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply
DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4
- UPC-0735090644130, 6930864920920, 0783325944715 783325944715, 735090644130
- SKU -WEBB014KMHSW6
- Model No. -CECOMINOD012186
- Manufacturer. -Qunqi
