SI FANG Mini Pneumatic Chamfering Machine, Air Chamfer Tool for Chamfering Metal Round Cor
₹11,287
:::
Remains until the end of the offer
Product Features

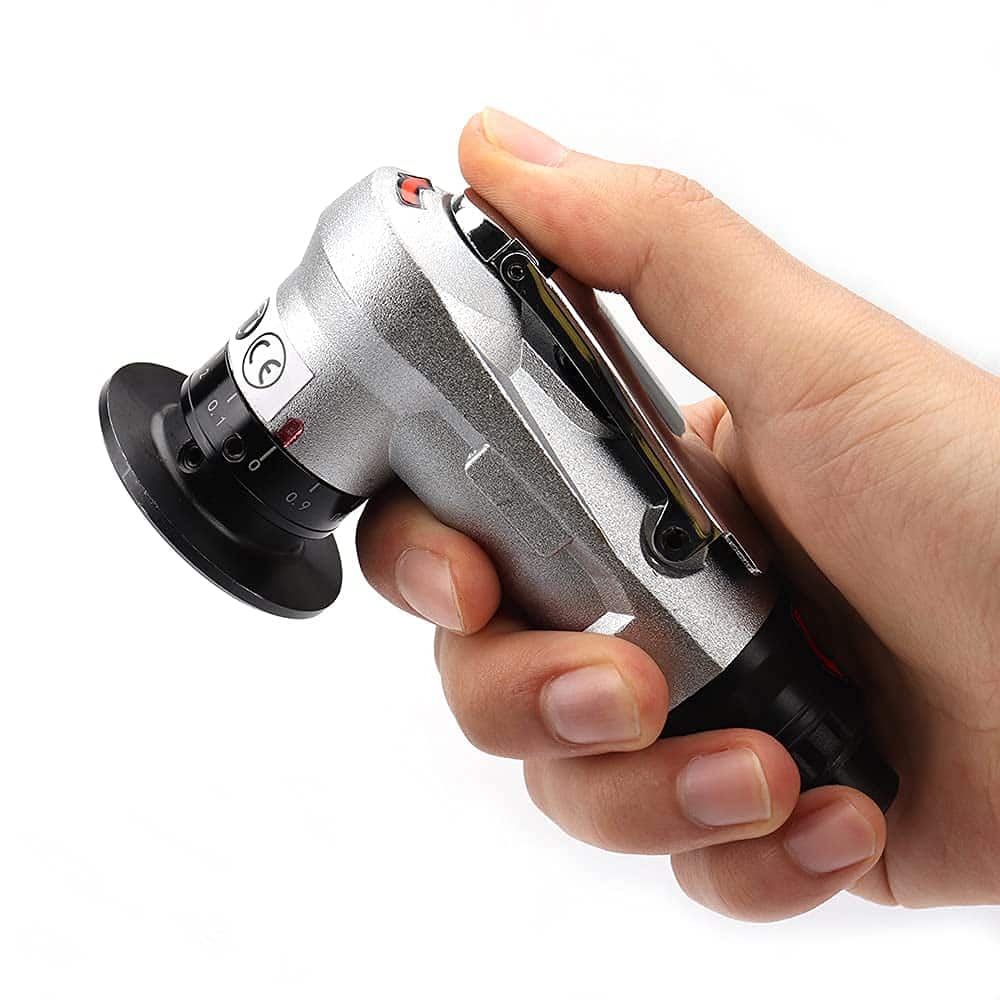

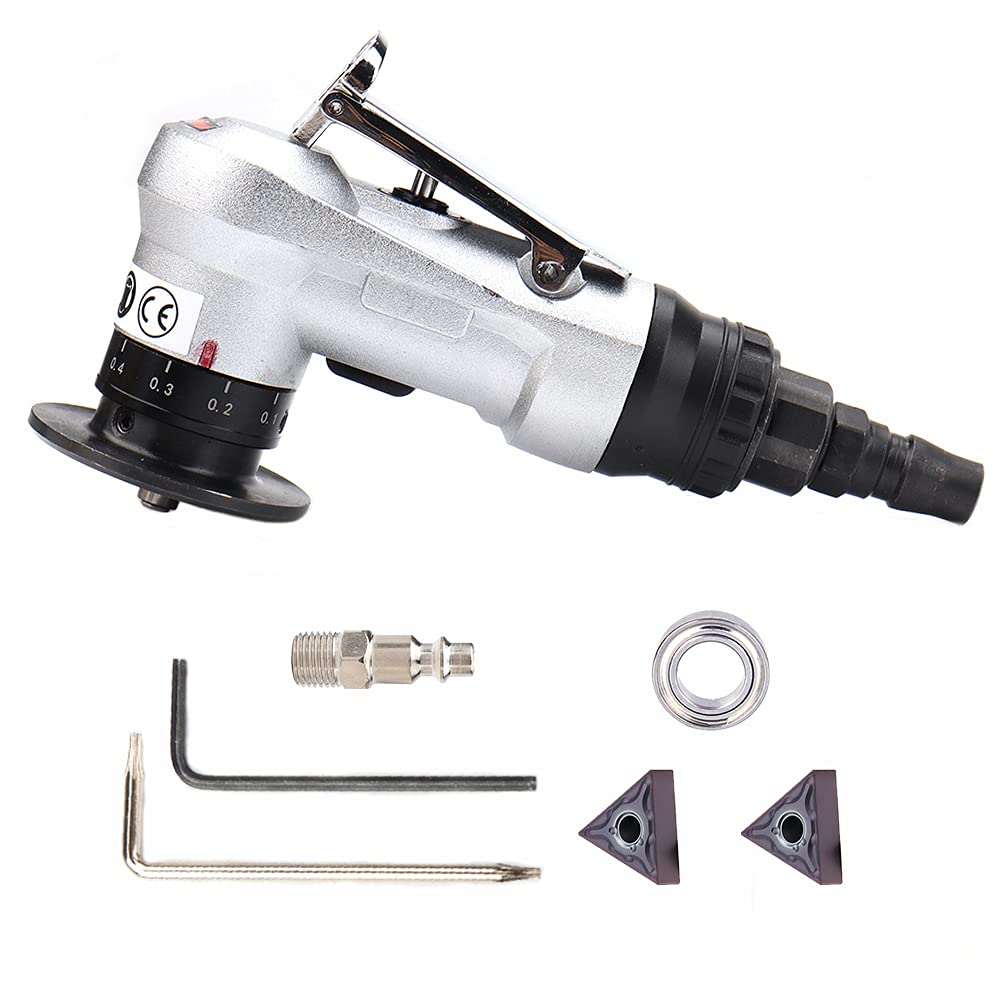

- COMPACT SIZE/CONVENIENT OPERATION—This mini pneumatic chamfering tool features a lightweight design that is compact and portable, and can be easily operated with one hand.It can be used to access areas where an angle grinder is not available, making it a nice addition to the workshop. This set comes with 2 extra carbide Inserts, 1 bearing, 1/4″ air inlet connector, wrenches and replacement screws.

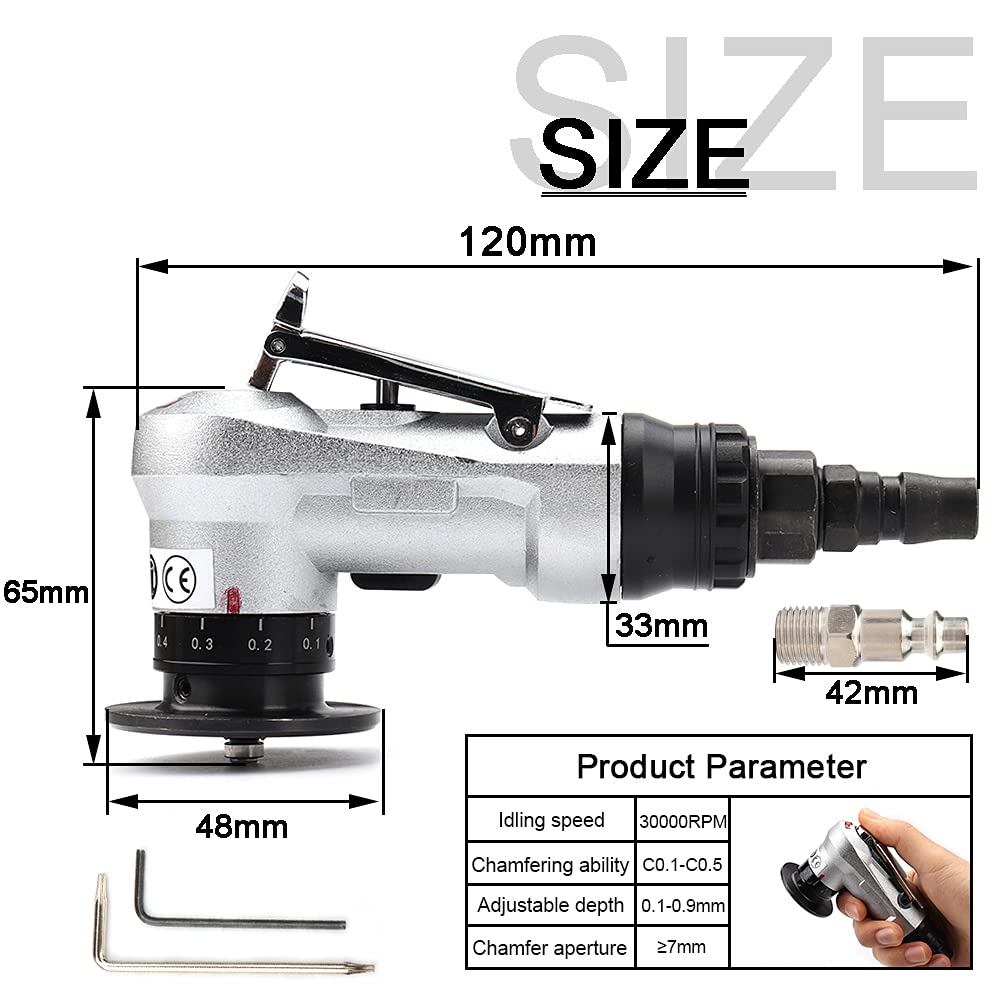

- ADJUSTABLE SPEED AND CHAMFERING SIZE—This air chamfer tool chamfering Machine knob can control the speed of the tool. 1-5 speeds freely adjustable. Air chamfering tool chamfering size: C0.1-2, Adjustable depth:0.1mm-0.9mm, Free speed:30000 RPM, air consumption 0.4/min.

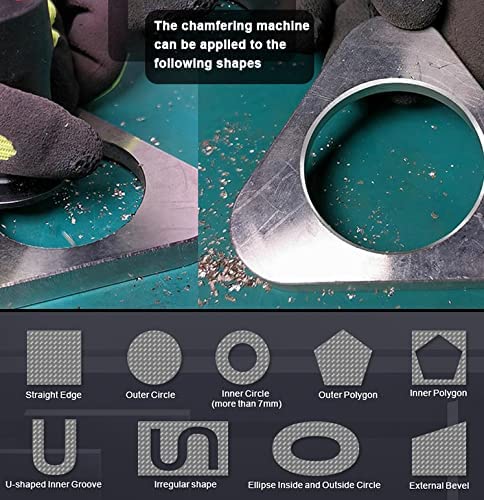

- Metal Deburring and Chamfering — The air chamfer tool uses the thinnest nut lock bearing available and comes with a C-angle carbide turning Inserts that can chamfer in the narrowest and shallowest spaces in steel and aluminum. Quickly removes sharp burrs from metal or chamfers edges. Suitable for a variety of angles including straight edges, inside and outside round holes, and irregular edges.
- SAVES TIME IN FINISHING AND SMOOTHING EDGES – The air chamfering tool can withstand high impact and high speed with low vibration, low resistance and low loss. Equipped with high-precision heat-treated C-angle blades for smoother work. Solve your pain of manually removing burrs and improve efficiency to a great extent.
- ANTI-BLOCKING DESIGN / EASY REPLACEMENT ACCESSORIES — The pneumatic chamfering tool is designed with a 1/4” air inlet with a metal filter to prevent foreign objects from entering and clogging. Replacement accessories are fully provided with the tool, equipped with extra replacement screws, no need to worry about losing the screws when replacing the accessories.
10 in stock
Description
- Product Description

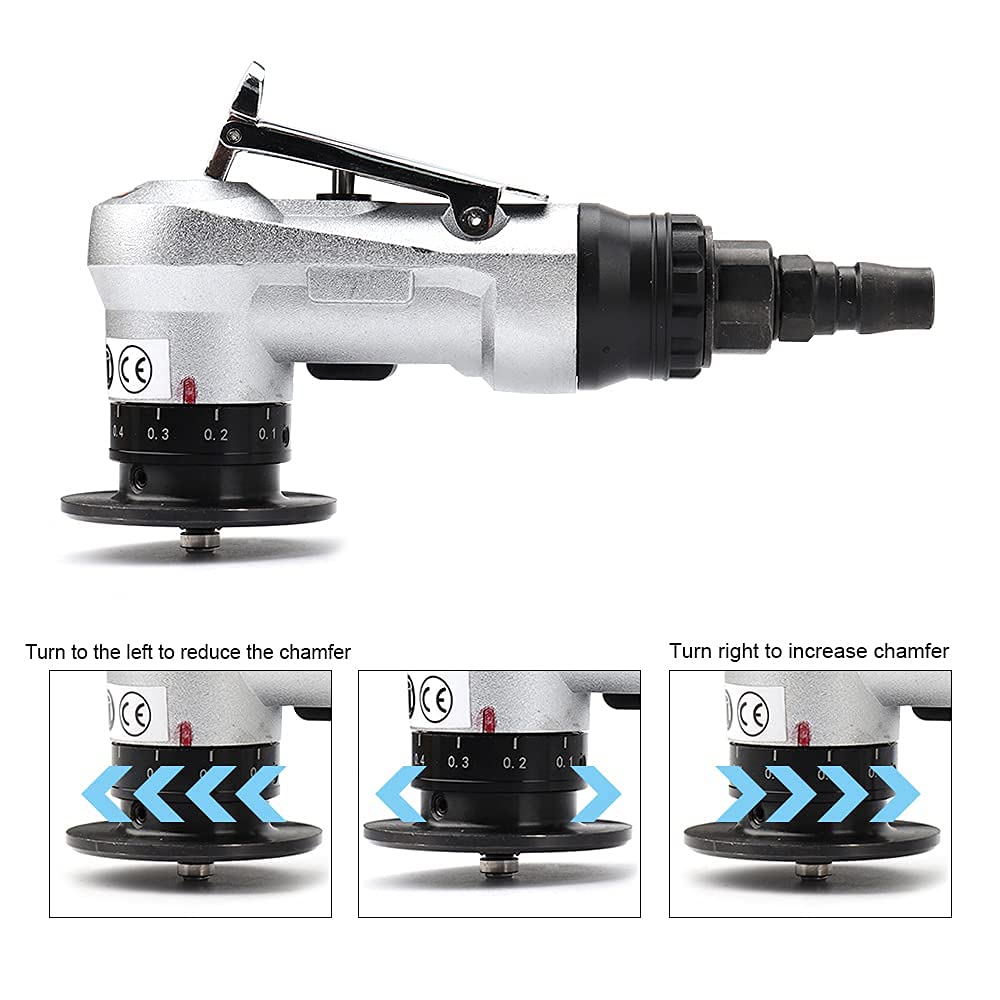

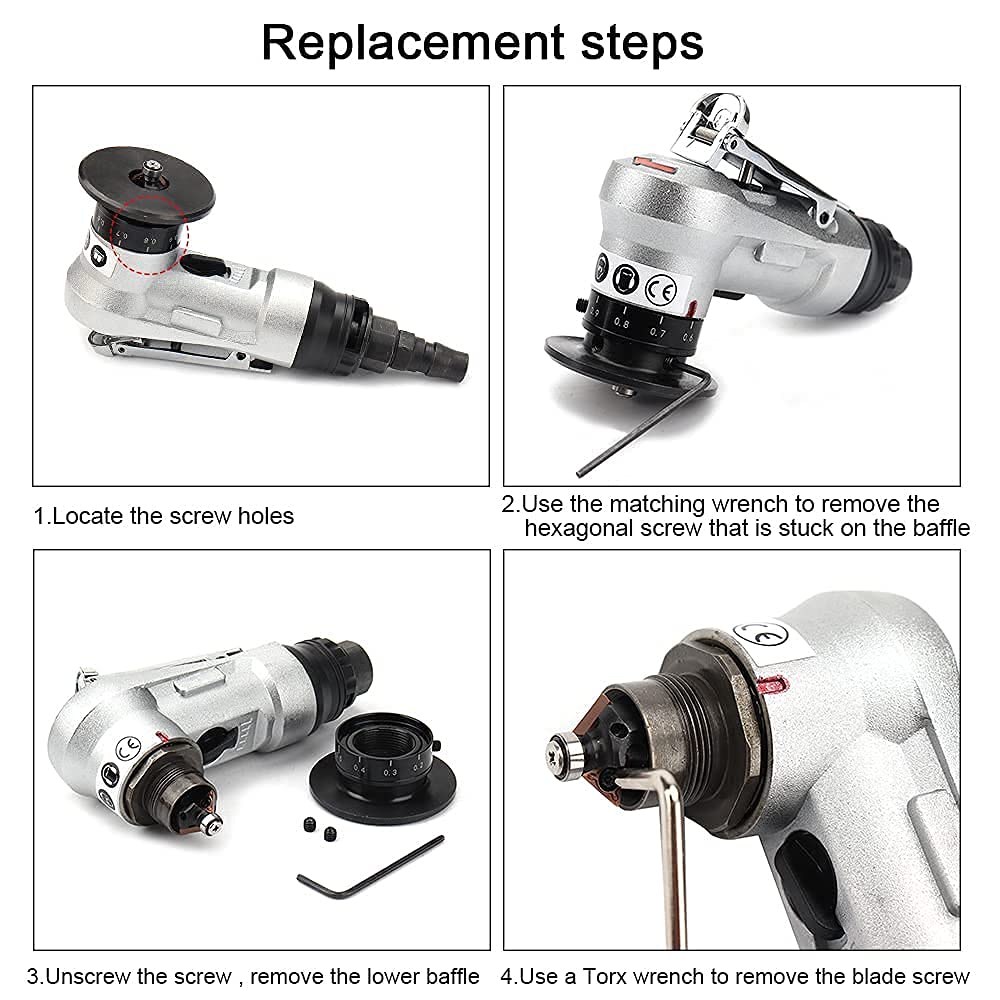

Features: The current thinnest outer 1mm hexagonal nut lock bearing is adopted, and the bearing adopts 3x7x3mm size as an auxiliary. It can be chamfered in the narrowest and shallowest space, suitable for various angles, such as straight edge straight chamfering, inner and outer round hole chamfering, Irregular chamfering, multilateral chamfering of the keyway. Used for deburring and chamfering the R side of metal trimming arc corners.The chamfer size can be adjusted at will:Loosen the 2 screws of the black gear plate with a thinner Allen key, twist the black gear plate left and right, adjust the chamfer size, and fix the 2 screws back to the original positionChange blade operation:Loosen the triangle blade screw with a thicker Torx wrench, replace the blade with a new one, and fix the screw again.Maintenance and oiling instructions for pneumatic chamfering machine:If the pneumatic chamfering machine is used for a long time, it is recommended to inject about 4cc of pneumatic tool oil into the air port (if there is no special tool oil, other engine oils are also available), it runs smoother and has lower noise during work.Specification: Name: Mini Pneumatic Chamfering MachineColor: silverSpeed: 3000rpmPressure: 0.6~0.8mpaAir consumption: 0.4/minConnector: 1/4inchChamfer size: 0~2mmFinish: N5Chamfer aperture: >8mmChamfer plate thickness: >3mmHole depth: >5mmChamfer angle: 45 degreesMachine chamfer size: 0.1-0.9mm adjustableAir intake adjustment: 1-5 gears adjustablePackage Content: 1 x Mini Pneumatic Chamfering Machine1 x interface 2 x Wrench1 x Analysis Chart
- UPC-8746030632607
- SKU -WEBB0946GGNXY
- Model No. –
- Manufacturer. -shuqiu
